ZYX

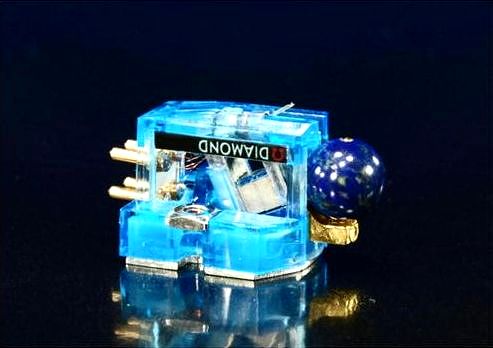

ZYX DIAMOND are built in combination with all utmost grade materials to straightly deliver audio signals as they were generated. With ZYX DIAMOND you can feel the original analog sound never experienced before.

Lapis lazuli Balancing Weight
A spherical object fixed to the front nose of ZYX OMEGA is a balancing weight to accord the sweet spot of the cartridge body and the gravity point of vibration system. Having checked up materials and repeated audio monitoring, a nonmetal Lapis lazuli ball having hardness 5.0, specific gravity 2.5, diameter 8mm, and weight about 1 gram is put in at the most appropriate position to form the best cartridge structure. The Labis Lazuli ball used in OMEGA's other advantage is centroid control. Due to its composition blended of a few kinds of sodalite having spherical shape, vibrating wave flown from the north pole of the ball is absorbed in the crystal architecture mingled inside, and vibrating wave running down the ball surface is finally cancelled at the south pole of the ball.

15 items in generator
ZYX only succeeded in development of a MC cartridge which does reproduce original stereo sound with a perfect sound balance between the left and right channel.

2 Layer Laminate Armatures
We made the armature structure have double layers, facing each other with opposite polarity, namely one laminate to face N-polarity and the other S- forming mutually reversed phase positions in order to short-circuit and simultaneously dissolve both eddy-currents generated in each armature.

K18 Gold Solid Terminals
Maximum quality 18-karat solid gold matches sapphire terminal board and gets rid of sound coloration unlike conventional plated terminals. Those are apt to create coloration against subtle output signal in micro ampere order due to battery effect between heterogeneous metals.

Sapphire Ternimal Board
This non-metal mineral is hard next to diamond, and has been employed as OMEGA's and DIAMOND's terminal board to lock up output terminal pins and statically holds the unit against any sorts of extraneous vibrations.

Solid Diamond Cantilever
The ZYX DIAMOND utilizes a State-of-the-Art cantilever design using a square diamond rod (□ 0.22mm). This creates a cantilever of low mass, the highest rigidity and superior dampening that allows the DIAMOND to track and respond to the most dynamic passage with great accuracy and extremely low resonance.

Technical Data (red letters : XH, SH, GH High output Model)
Type	Moving Coil (Dynamic) “REAL STEREO” Generator System
Cryogenic Treatment	Temperature: -196 ℃ (-320оF)
Output Voltage	0.24mV (0.48mV) (3.54cm/sec, 1kHz)
Frequency Response ±1dB	10 Hz - 100 kHz 20 Hz - 20 kHz
Channel Separation	＞ 30dB 〔 1kHz 〕
Channel Balance	＜ 0.5dB 〔 1kHz 〕
Recommended Tracking Force	2.0gm 〔 20 ゜C-25 ゜C 〕
Tracking Force Range	1.7gm - 3.0gm
Trackablity	＞ 60μm
EQ Compliance horizontal   vertical	15×10-6cm/dyne 12×10-6cm/dyne
Internal Impedance	4.0 Ω (8.0 Ω)
Load Impedance	＞ 100Ω
Coil Wire X type   S type   G type	6N Crystal Copper φ.035mm/CRYO 5N Silver φ 0.035mm/CRYO 5N Gold φ 0.035mm/CRYO
Cantilever Material	Natural Diamond 0.22mm
Stylus	Micro-Ridge Solid Diamond 0.07mm
Contact Radius, Life Time	3μm×60μm, 2000Hour/2.0gm
Output Terminals	φ1.25mm K18 Solid Gold 〔 EIA 〕
Terminal Board	Pure Sapphire Plate
Front Sub Weight	Lapis lazuli ball φ8mm, 1.2gm
Dimensions	W (Width) : 16.8mm L (Length) Body / with Terminals : 25.0mm / 29.2mm H (Height) : 16.5mm
Net Weight	7.8gm (TB2 attached)
