R50 Bloom MONO

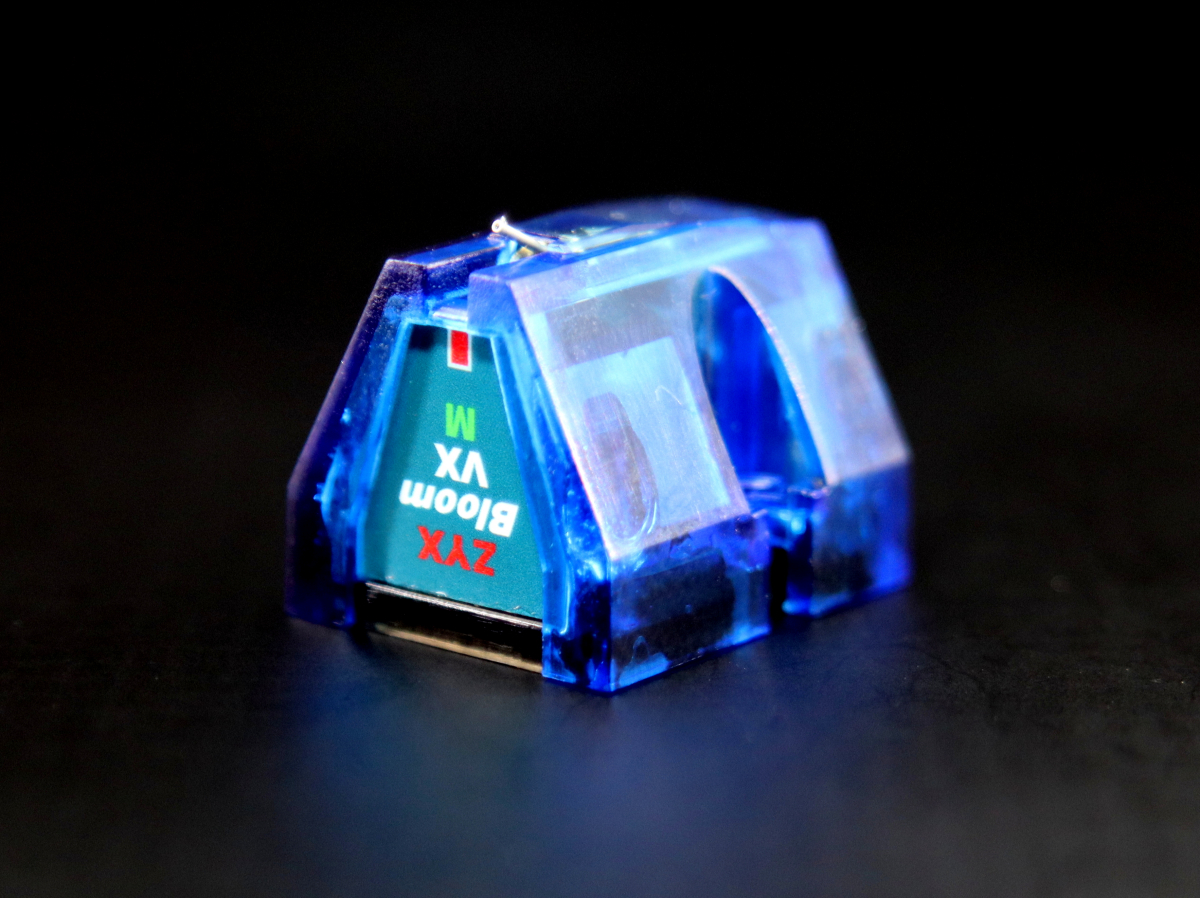

r50 mono 1

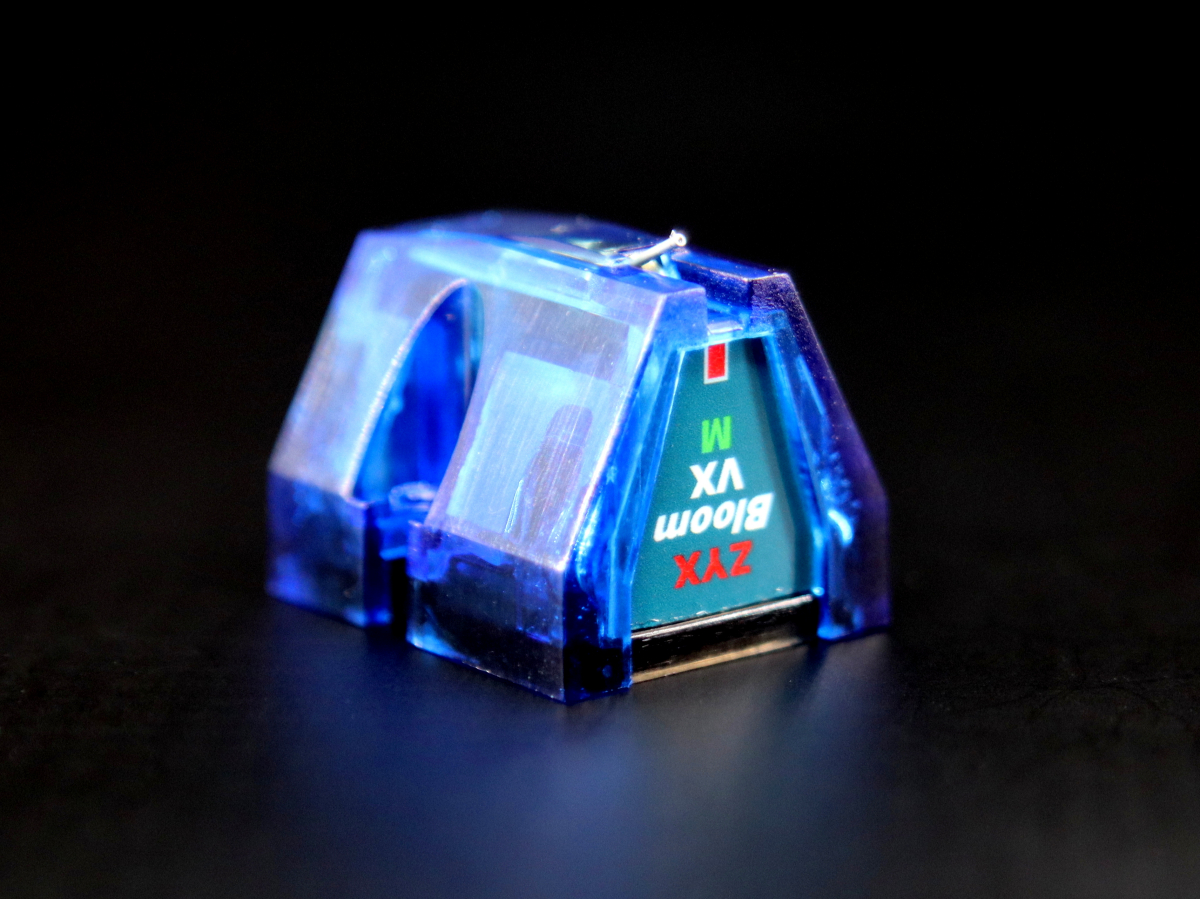

r50 mono 2

Stylus
Our styli used in all type of MONO have the edges of the diamond shank set parallel to the sides of the cantilever. Using this type of stylus, the hardest axis of the crystal is aligned to act as the contact point with the record groove. This gives stable and smooth tracing and produces a very refined sound, with the additional benefit of giving the stylus an extended life. The contact point of the stylus is of course spherical, and its contact radius is 1.0mil with refined mirror finish.


Technical Data
Type Monaural Moving Coil (Dynamic)
“REAL STEREO” Generator System
Cryogenic Treatment Temperature: -196 ℃ (-320°F)
Coil Wire 6N OFCφ0.035mm
Output Voltage 1.0mV (5.0cm/sec, 1kHz)
Frequency Response
±1dB		 10 Hz - 25 kHz
20 Hz - 18 kHz
Recommended Tracking Force 2.5gm 〔20゜C-25゜C〕
Tracking Force Range 2.0gm - 3.5gm
Trackability ＞60μm/2.0gm
EQ Compliancehorizontal
 vertical
 12×10-6cm/dyne
12×10-6cm/dyne
Internal Impedance 10Ω
Load Impedance ＞ 100Ω
Cantilever Material ALMg5 tube φ0.45×φ0.30mm
Stylus Spherical Solid Diamond □0.1mm
Contact Radius, Life Time 1.0 mil, 1000hour/2.5gm
Output Terminals φ1.25mm gold plated 〔 EIA 〕
Terminal Board Glass Epoxy Plate
Dimensions 16.2mm(W)x19.7mm(L)x17.6mm(H)
Net Weight 5.0gm, 7.7gm (TB), 9.0gm(SB)
